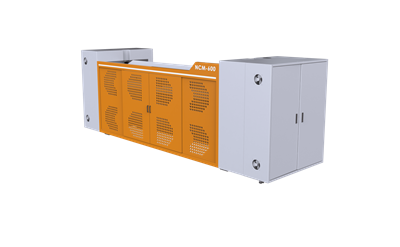

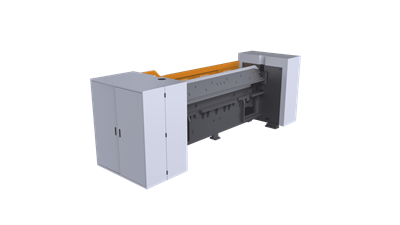

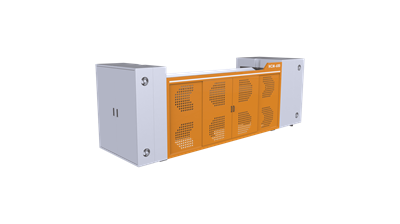

Equipment use

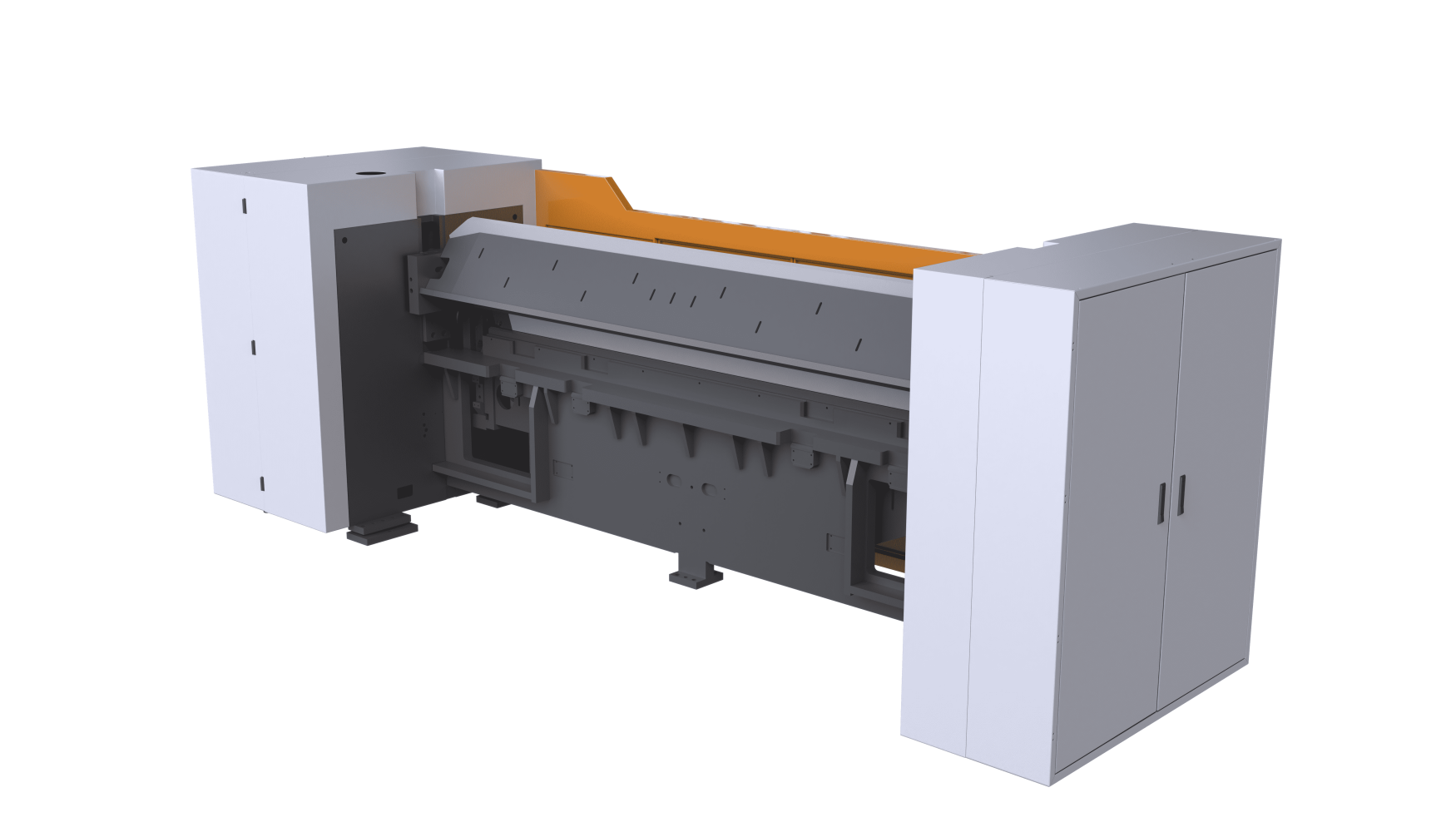

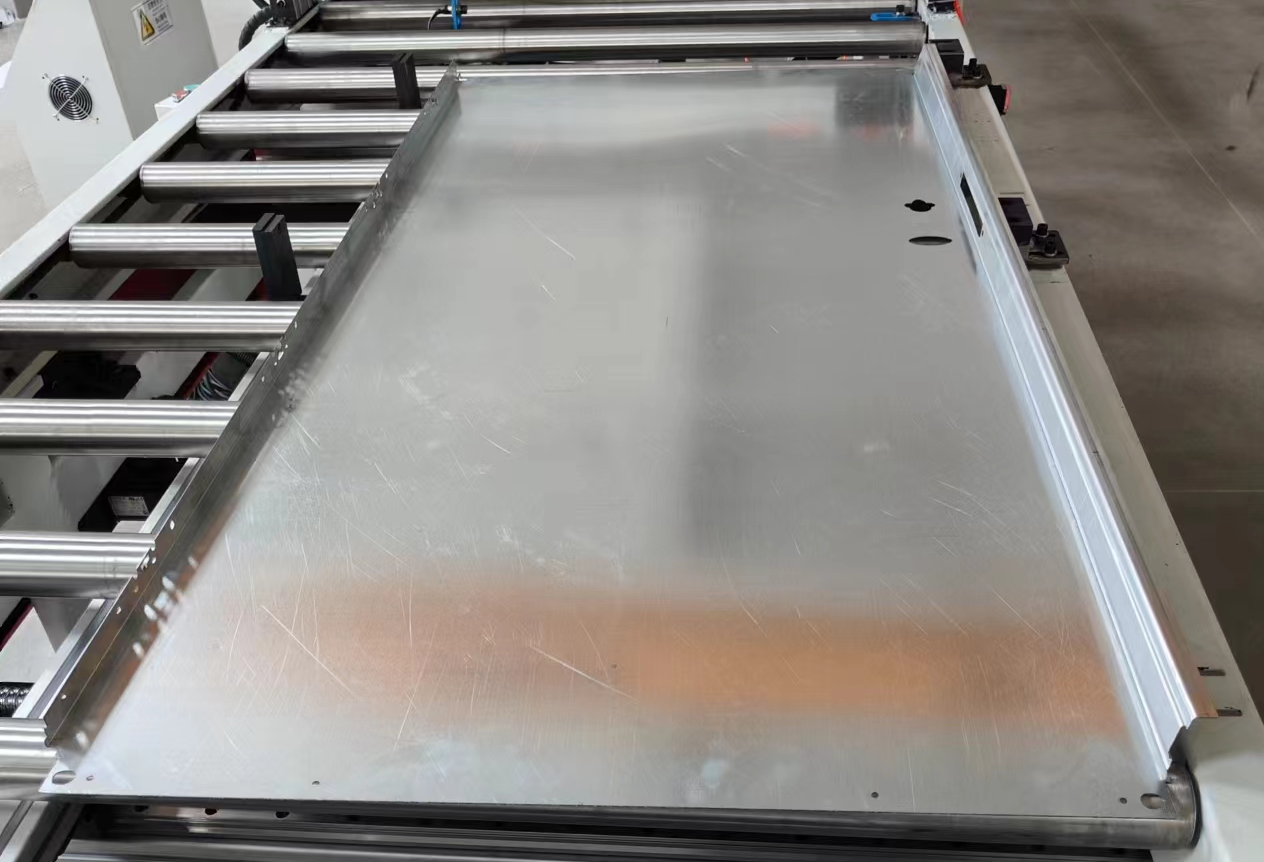

It is used to form the frame of the locking edge/hinge edge of the front and rear door panels of various steel and stainless steel doors such as anti-theft doors/fireproof doors/medical doors/purification doors.

Working principle

 After starting up, the data for the folding requirements is entered first. After the entry is completed, one side of the material is folded. After the folding is completed on one side, the direction is changed to fold the other side, thereby achieving the frame forming of the door panel lock/hinge edge.

feature of product

● Adopt 8-axis full servo CNC system to realize full CNC programming;

● Automatic forward and reverse folding functions can be realized without manual intervention for reversal;

● The upper knife and folding knife can be combined into various sizes in 10mm increments as needed;

● The maximum folding angle of forward folding and reverse folding can reach 150°

Technical parameters and main parts configuration list

1. Technical parameters

2. Configuration list of main parts

Random information

Cooperation required from the user

1. Power supply: 380V, 50HZ, voltage fluctuation is -5% ~ +10%; when the voltage fluctuates greatly, the user must be equipped with a voltage stabilizer, otherwise the low-voltage electrical appliances will be in an abnormal working state, and the life of the electrical components will be reduced or Problems such as damage, scrapping of processed products, stoppage of work caused by motor alarm, damage to computer hard disk, etc.

2. Air source: output 0.6Mpa or above, dry and clean compressed air, air supply volume 0.3 cubic meters/minute; if the air is not dry enough, the user should be equipped with a cold dryer, otherwise water will enter the pneumatic parts and cause the piston friction resistance to change. Large, worn sealing rings lead to air leakage and other problems. Especially in winter, they are prone to freezing, leading to increased damage to pneumatic components.

3. Ambient temperature: 0°C ~ +40°C; below 0°C, parts that may contain water such as oil-water separators and gas tanks will freeze. The lubricating oil will be too viscous due to the low temperature, affecting the lubrication effect. , resulting in component damage or failure.

4. Environmental humidity: relative humidity 20~80%RH (non-condensing).

5. Stay away from strong vibration sources and electromagnetic interference; if the distance is too close, the user must be equipped with a filter, otherwise it will cause problems such as computer screen flashing, LED light flashing, driver alarms, encoder abnormalities, or interference with other nearby equipment.

6. An environment with less dust and no harmful and corrosive gases.

7. It is forbidden to cut off the power when the equipment is working, and keep the voltage stable.
